Flow Instruments

We offer a wide variety, cost effective range of Flow Instruments applicable to the process control industry. Delivery is typically 2~3 Weeks from firm order. The configuration setup is very user-frendly, and it does not take long to set up an instrument. Our Electromagnetic Flowmeters come with an internal earth ring that ensures fast installation in most cases. Below are just a some of the Flow applications that we cover.

Please contact us if you concider other application such as fuel flow for instance.

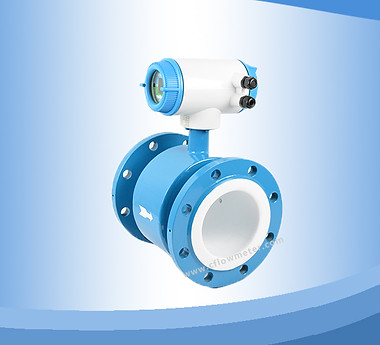

ElectroMagnetic Flowmeters

The wide variety of combinations and versions from the modular system means that it can be adapted to meet your measuring application.

FEATURES

Fast response and high stability.
High Accuracy, 0.5%, 0.2% for flowrate
Dual cavity housing to separate electronics part from wiring part.
AC power supply common use (85~265vac).
High visible backlit LCD for easy operation.
Output: Pulse, 4~20mA
Communication: e.g. RS485, RS232C, HART, Profibus, MODBUS etc.
BI-direction measuring and totalizing
Battery Operated units with up to 15Yrs life

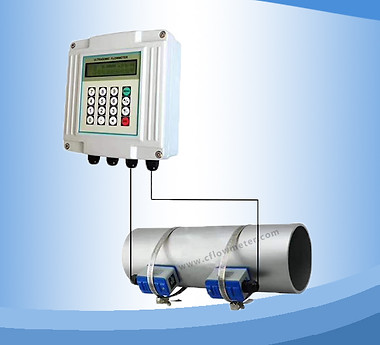

Clamp-On Ultrasonic Flowmeters

Clamp on Ultrasonic Flowmeter using Transit time of flight.

Linearity: 0.5%, Repeatability: 0.2%, Accuracy: ± 1 %. Easy to operate. Several type transducers for selection, measuring pipe size is from DN15mm to DN6000mm Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability. Powerful Recording Function, record the totalizer data of the last 64 days/64 months/5 years. The wall-mounting flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles. Plus Handheld units.

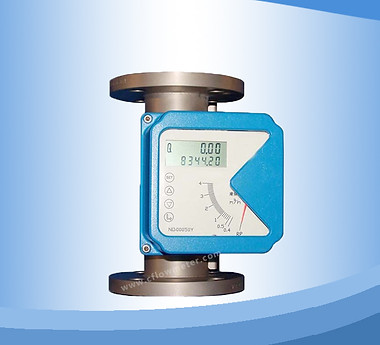

Variable Area Flowmeters

Metal tube Rotameters:

Measure Medium: Liquid

Gas

Range Ratio

10:1

Accurate Degree

1.5 % 2.5%

Fluid Working Pressure

DN15-DN50：4.0Mpa; DN80- DN100；1.6 Mpa

Coat Working Pressure

1.6 Mpa

Fluid Working temperature

-80℃-+200℃(For Model PTFE≤+85℃）

Connection Type

（Flange connection or screw thread connection, flange standard refer to GB/T9119;ANSl 150lbs.300lbs; HG20592-20635;Other standard flange can be made by the user’s requirement.）

Gas Turbine Flowmeters

Gas turbine flowmeter( flow transducer) is a high accuracy flow sensor .It can be widely used in the fields of air, natural gas and other gas to be measured. Several output and display methods can be selected.

Main parameters:

Accuracy: popularly +_1% preferred(special calibrated), +_1.5%, +_2.5%.

Low velocity ,Minimum velocity of flow: Less than 1.5m/s

Nominal diameter: DN4-DN300

Working pressure: 1MPa, 1.6MPa, 2.5MPa, 4.0MPa

Medium temperature: -20~+120centigrade(stainless steel), 0~+120centigrade(PP); -0~+60centigrade(UVPC).

Ambient temperature: -20~+55centigrade

Humidity: Less than 95%

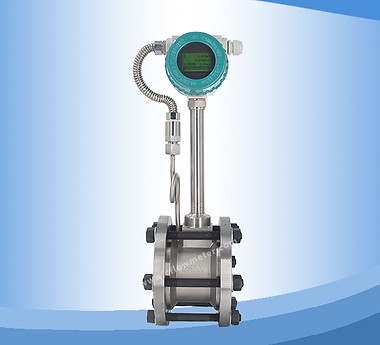

Vortex Flowmeters

Control: Superheated Steam, saturation Steam, compressed air, ordinary air(oxygen, nitrogen, hydrogen, natural gas, coal gas,etc),water and liquid (water, petrol , alcohol, benzene ,etc.)

Precision: liquid +-1.0%FS

Gas and vapor: +-1.0% FS or +-1.5%FS

Range of medium temperature: -25centigrade to +350C

Ambient temperature: -25centigrade to +70C

Power: analog output:18—45 VDC

Pulse output:14—30VDC

Working pressure:< 3.2Mpa

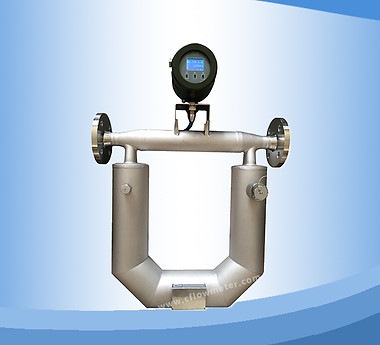

Coriolis Flowmwters

Coriolis mass flowmeters are the leading precision flow and density measurement solution offering the most accurate and repeatable mass measurement for liquids, or slurries. Coriolis meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.

Accuracy: ±0.1~0.5%

Repeatability: ±0.1~0.25%

Density measurement range: 0.3~3g/cm3, Accuracy: ±0.002 g/cm3 Operating temperature: -50~+200℃(standard), -200~+300℃

Ambient temperature: -20~+60℃ or -40~+60℃

The measuring tube material: SS316L; The housing material: SS304 Nominal pressure: 4.0MPa (standard)

Ex-proof: Exd (ia)ⅡC T6Gb
